Polyurethane YEL-996 Coil Storage Pad. Customizations Available.

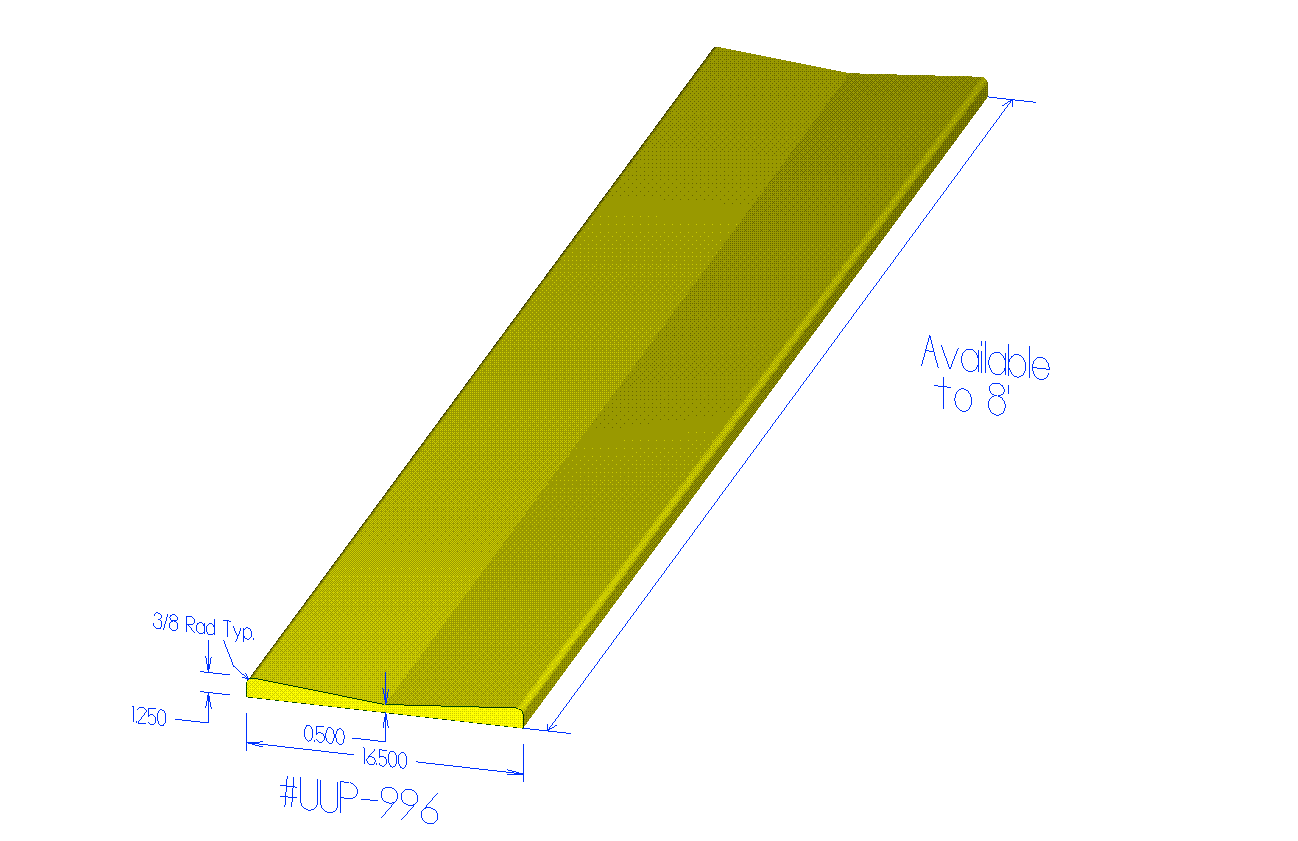

YEL-996 COIL STORAGE PAD

16 ½” wide, “V” shaped coil pad
Standard lengths available up to 8’
Custom lengths available up to 10'

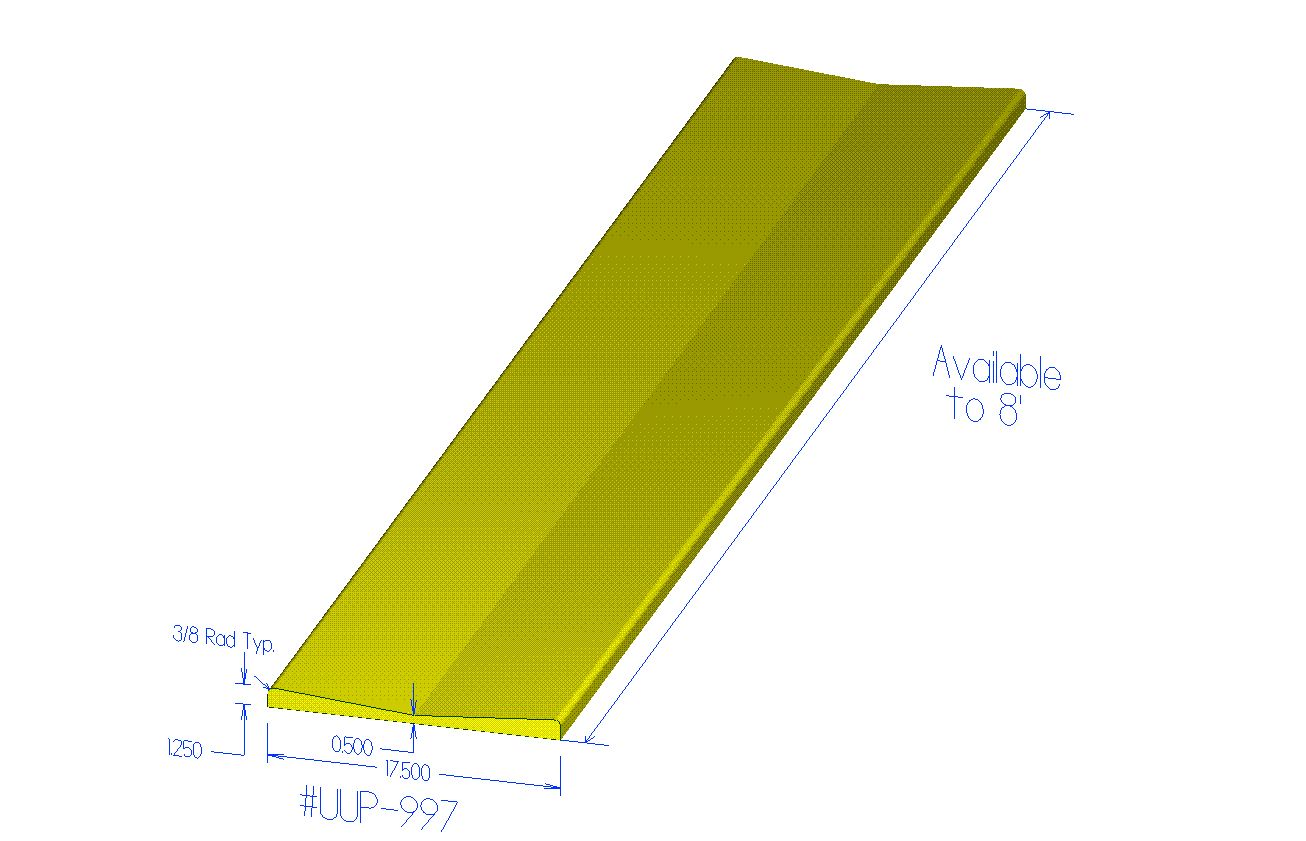

Polyurethane YEL-997 Coil Storage Pad. Customizations Available.

YEL-997 COIL STORAGE PAD

17 ½” wide, “V” shaped coil pad
Standard lengths available up to 8’
Custom lengths available up to 10’

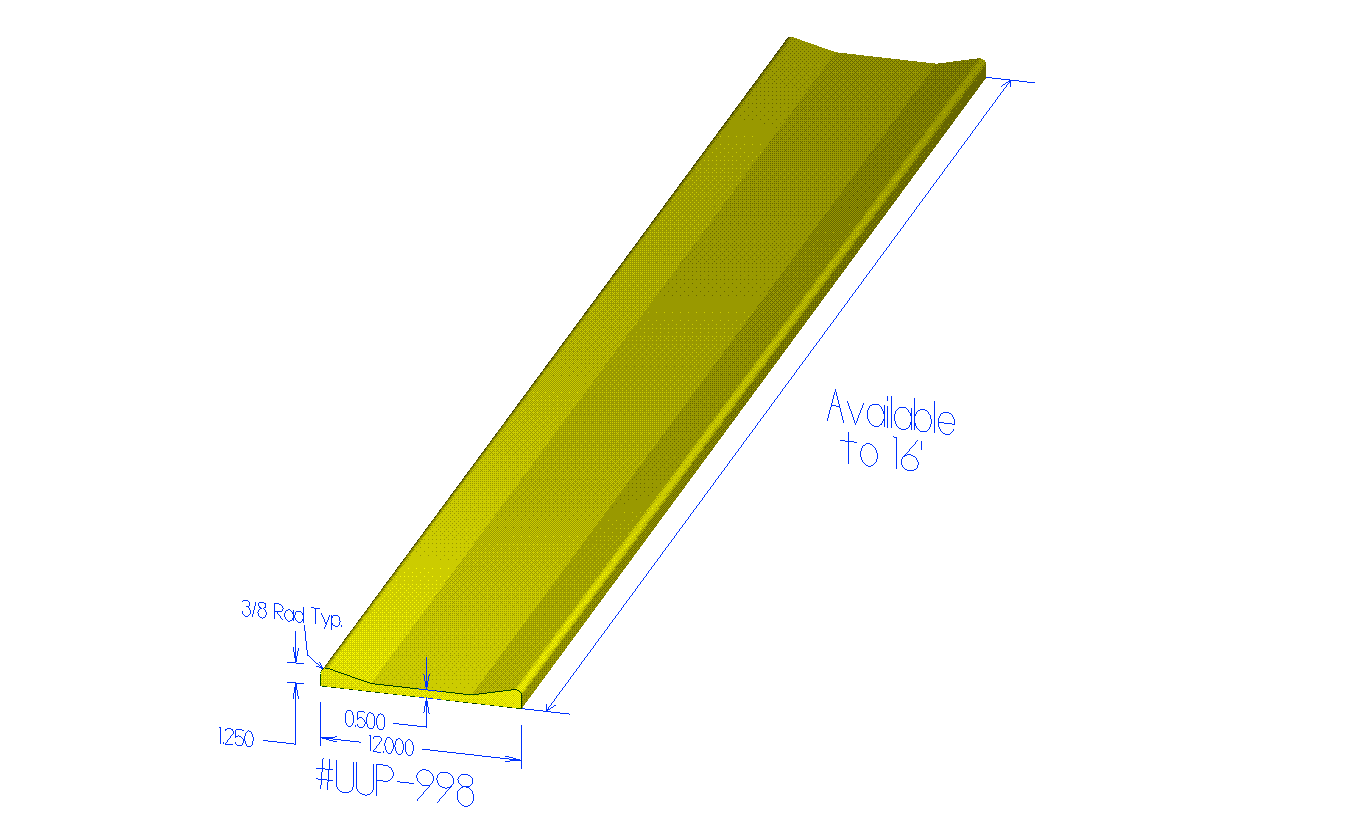

Polyurethane YEL-998 Coil Storage Pad. Customizations Available.

YEL-998 COIL STORAGE PAD

12” wide with a 6” flat, “V” shaped on edges
Standard lengths available up to 8’
Custom lengths available up to 10’

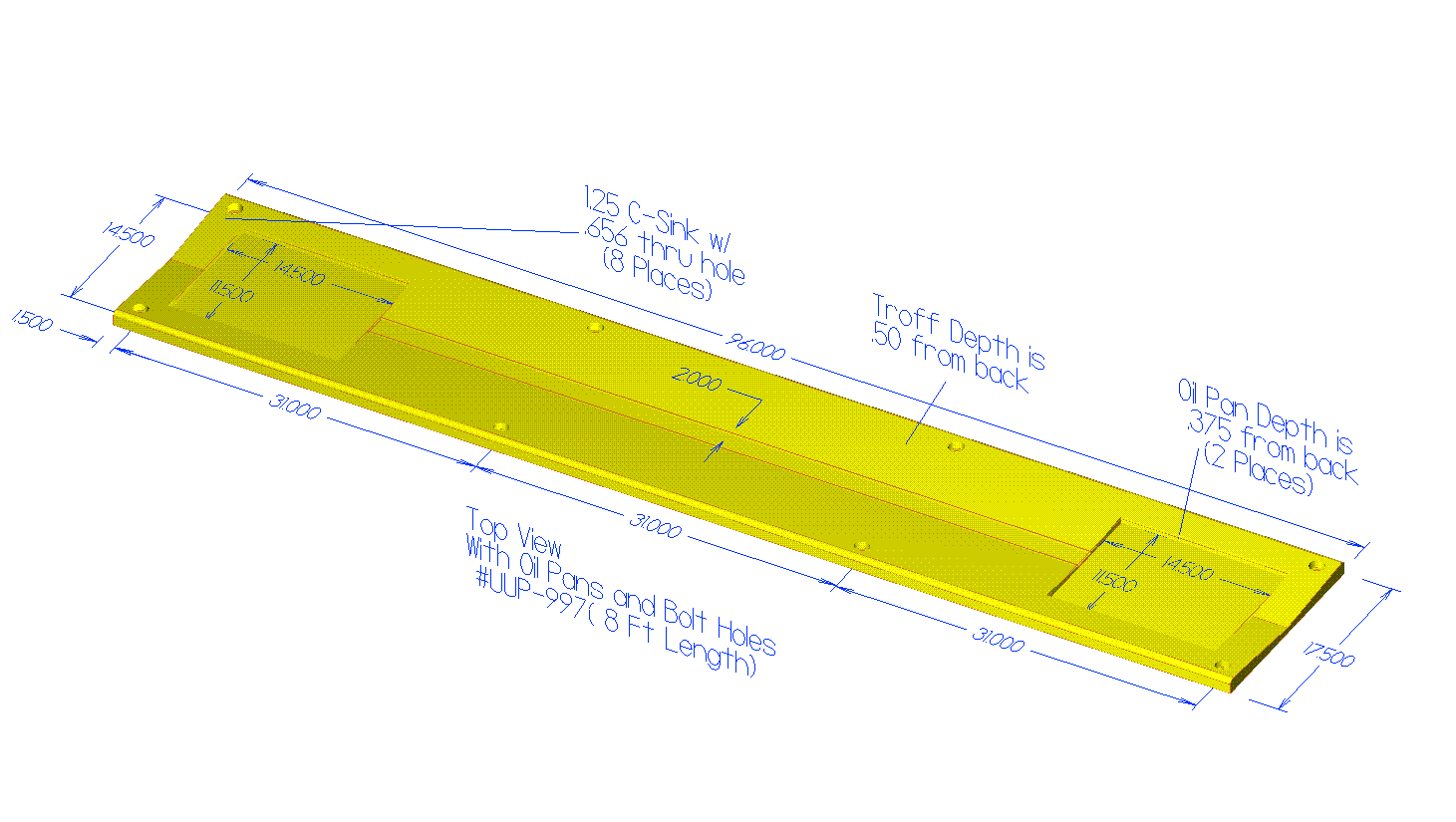

Polyurethane Coil Storage Pad with C/S Bolt Holes, Oil Pans, and Oil Channel. Customizations Available.

COIL STORAGE PAD WITH C/S BOLTHOLES, OIL PANS, AND OIL CHANNEL

These options are available for all of our coil storage pads.

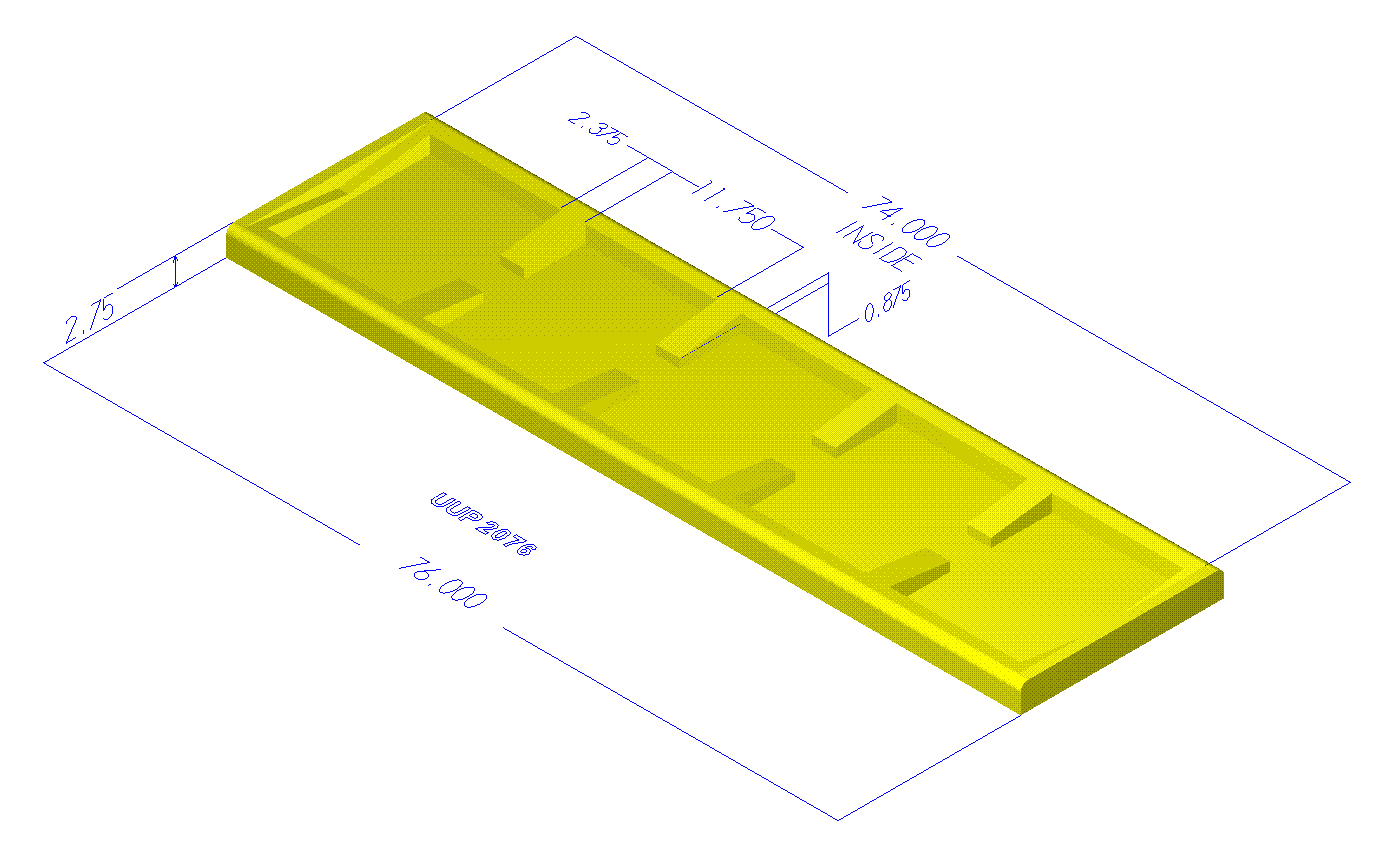

Polyurethane YEL-2076 Coil Storage Pad. Customizations Available.

YEL-2076 COIL STORAGE PAD

20" wide "V' shaped x 76" long coil pad. Designed for coils up to 72" long. This pad will contain 100% of all oil that comes from coils. No oil will leak to the floor with this pad.

More Coil Storage Solutions

Learn more about our coil storage saddles that are available through urethane Coil Storage Pads.

Explore Our Saddle Options

Polyurethane YEL-500 Coil Storage Saddle. Custom Colors Available.

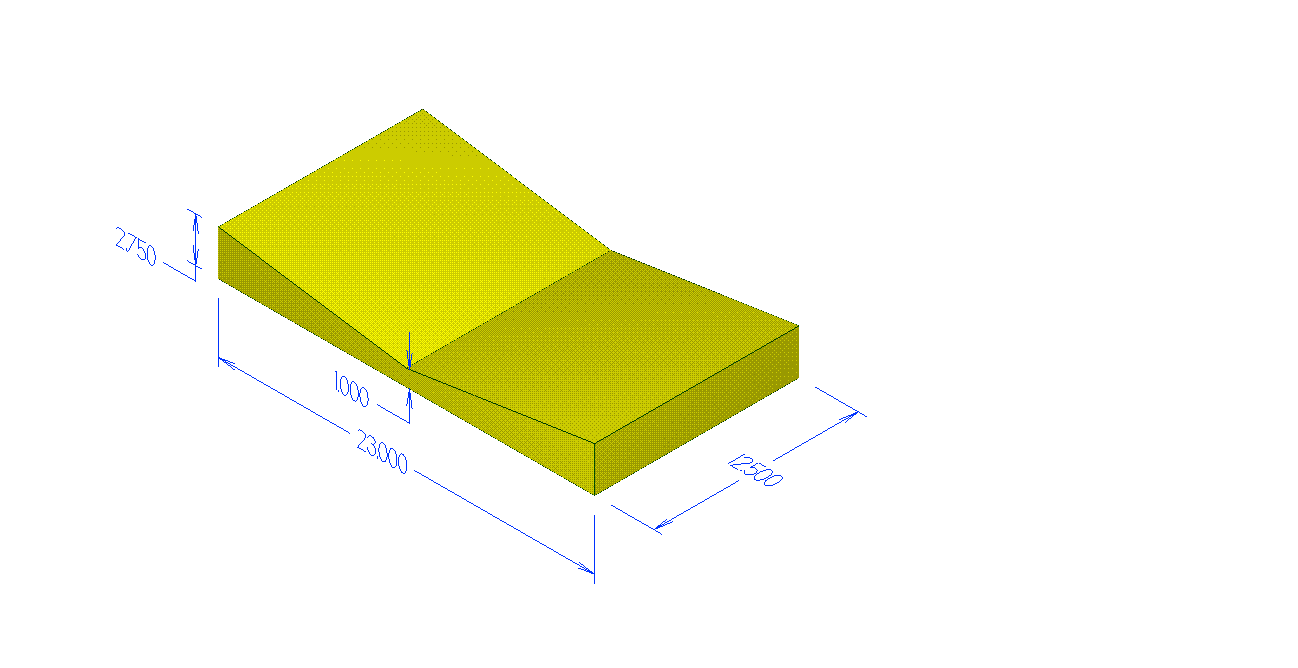

YEL-500 Urethane Coil Saddle

2 ¾” thick on end x 1” thick in middle x 23” wide x up to 12 ½” long.
Available in yellow, red and orange color.

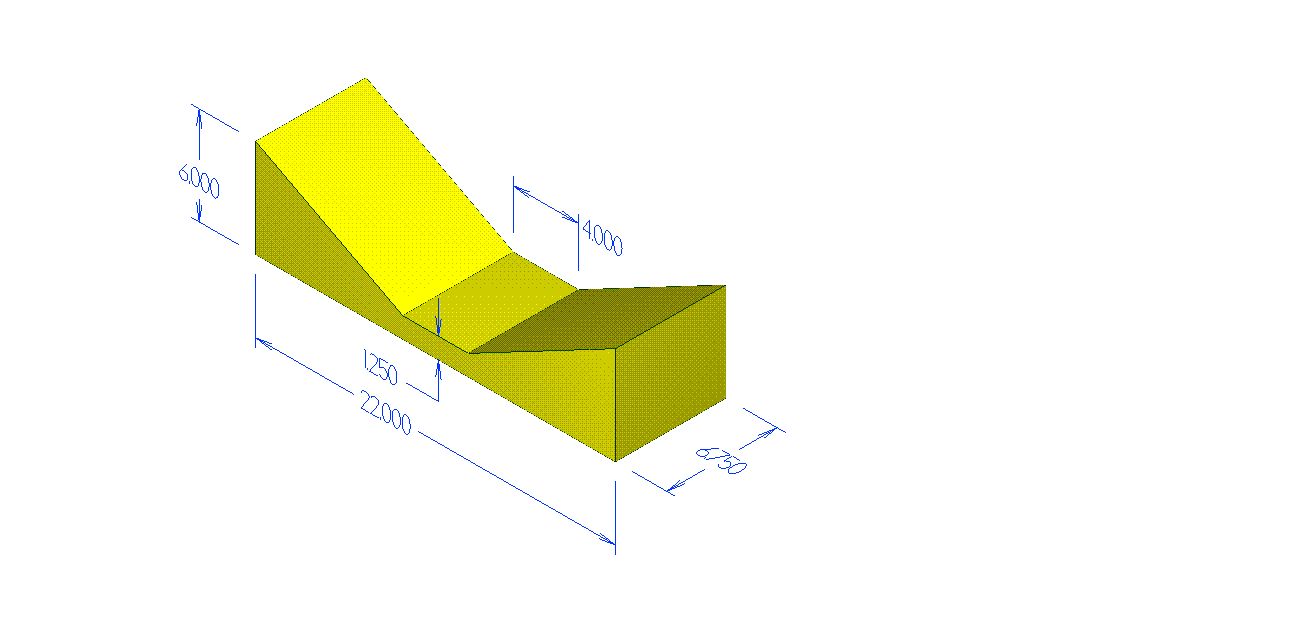

Polyurethane YEL-510 Work Roll Saddle. Custom Colors Available.

YEL-510 Urethane Work Roll Saddle

6” thick on end x 1 ¼” thick in middle w/4” flat x 22” wide x up to 6 ¾” long.
Available in yellow, red and orange color.

Polyurethane YEL-520 Coil Storage Saddle. Custom Colors Available.

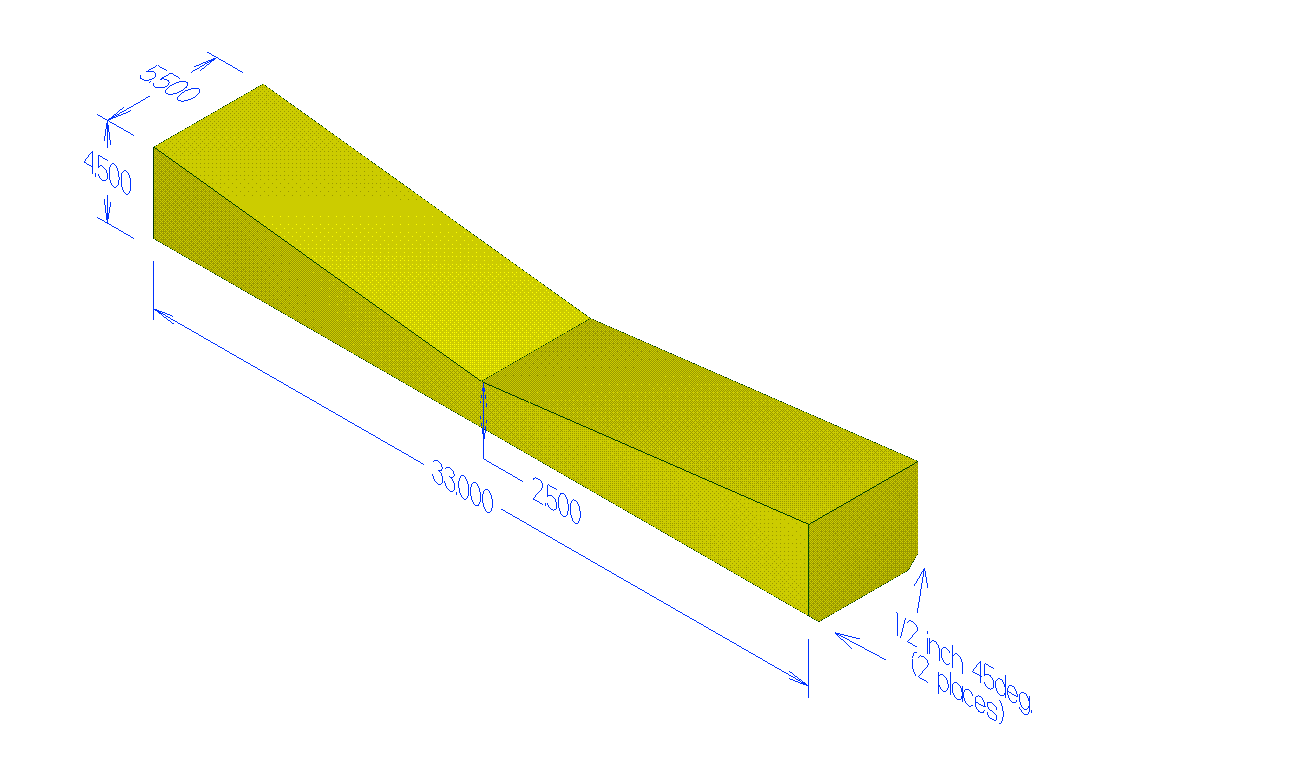

YEL-520 Urethane Coil Saddle

4 ½” thick on end x 2 ½” thick in middle x 33” wide x 5 ½” long.
Available in yellow, red and orange color.

Polyurethane YEL-530 Work Roll Saddle.

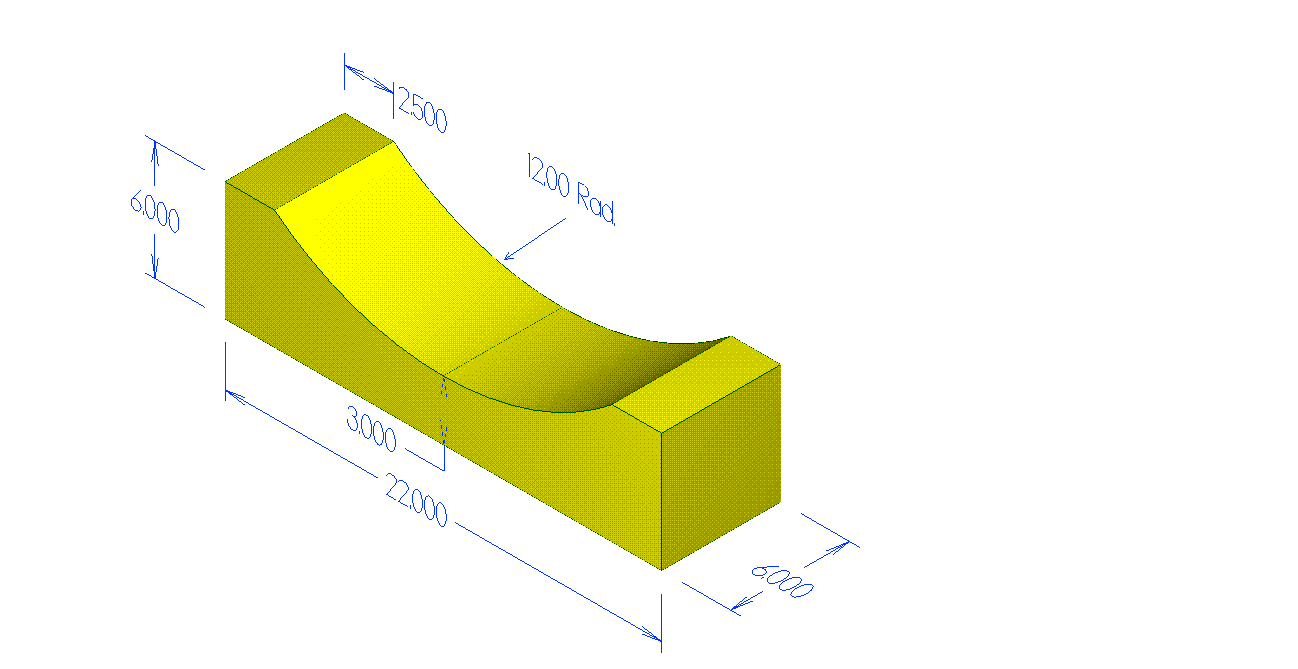

YEL-530 Urethane Work Roll Saddle

6” thick on end x 22” wide x 6” long with a 12” radius molded in center. Holds up to 24” diameter work rolls.

Polyurethane YEL-540 Coil Storage Saddle. Custom Colors Available.

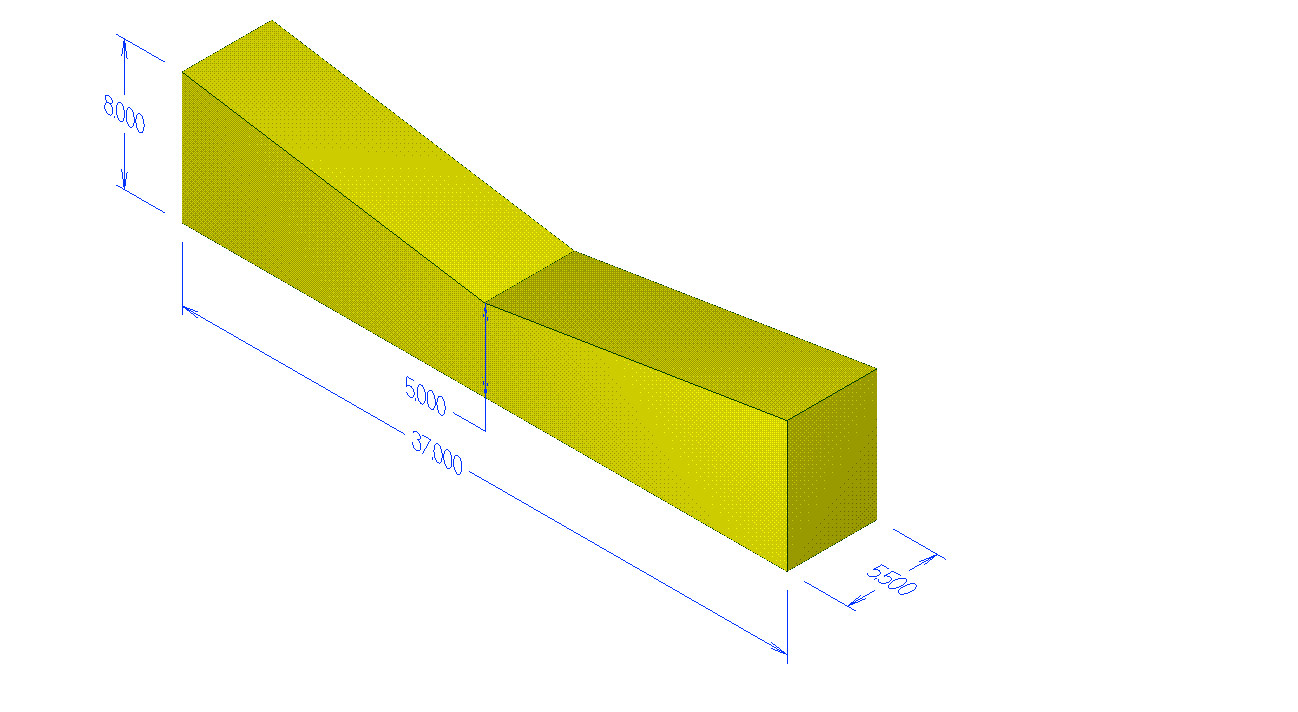

YEL-540 Urethane Coil Saddle

8” thick on end x 5” thick in middle x 37” wide x 5 ½” long.
Available in yellow, red and orange color.

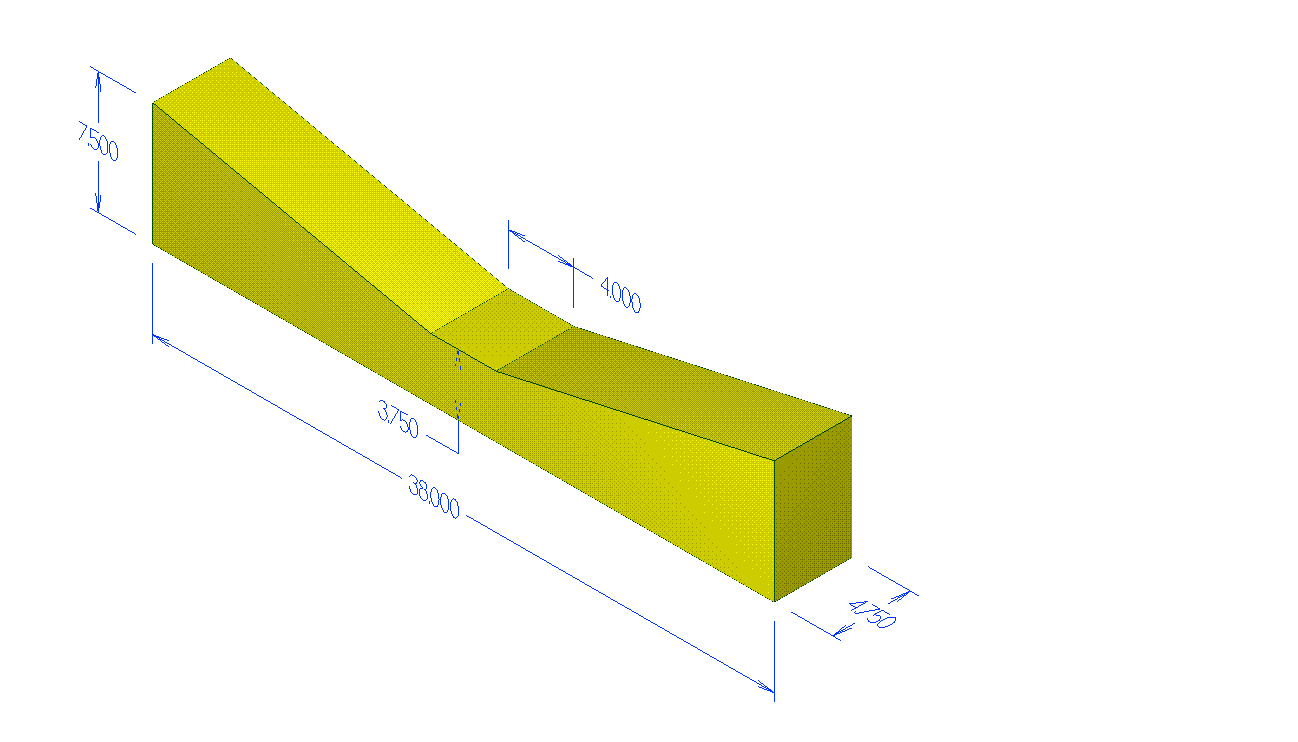

Polyurethane YEL-550 Coil Storage Saddle. Custom Colors Available.

YEL-550 Urethane Coil Saddle

7 ½” thick on end x 3 ¾” thick in middle w/4” flat X 38” wide x 4 ¾” long.
Available in yellow, red and orange color.

Polyurethane YEL-560 Coil Storage Saddle. Custom Colors Available.

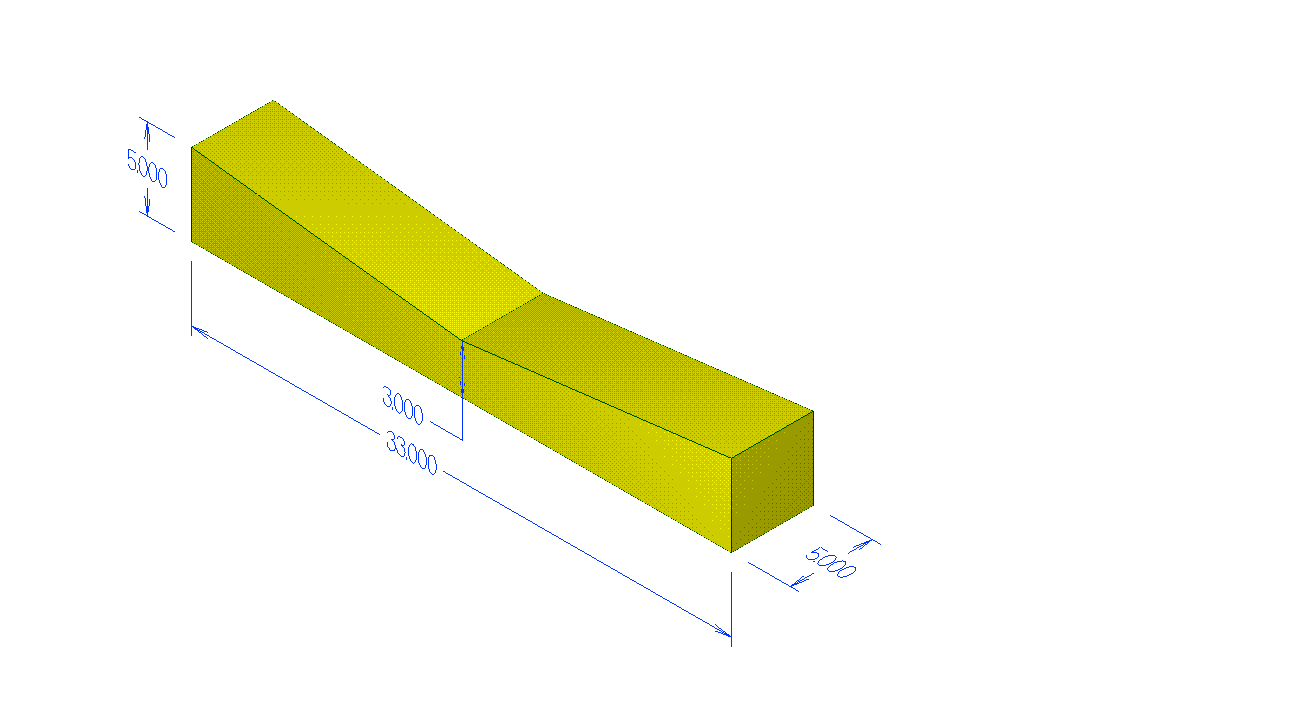

YEL-560 Urethane Coil Saddle

5” thick on end x 3” thick in middle x 33” long x 5” long.
Available in yellow, red and orange color.

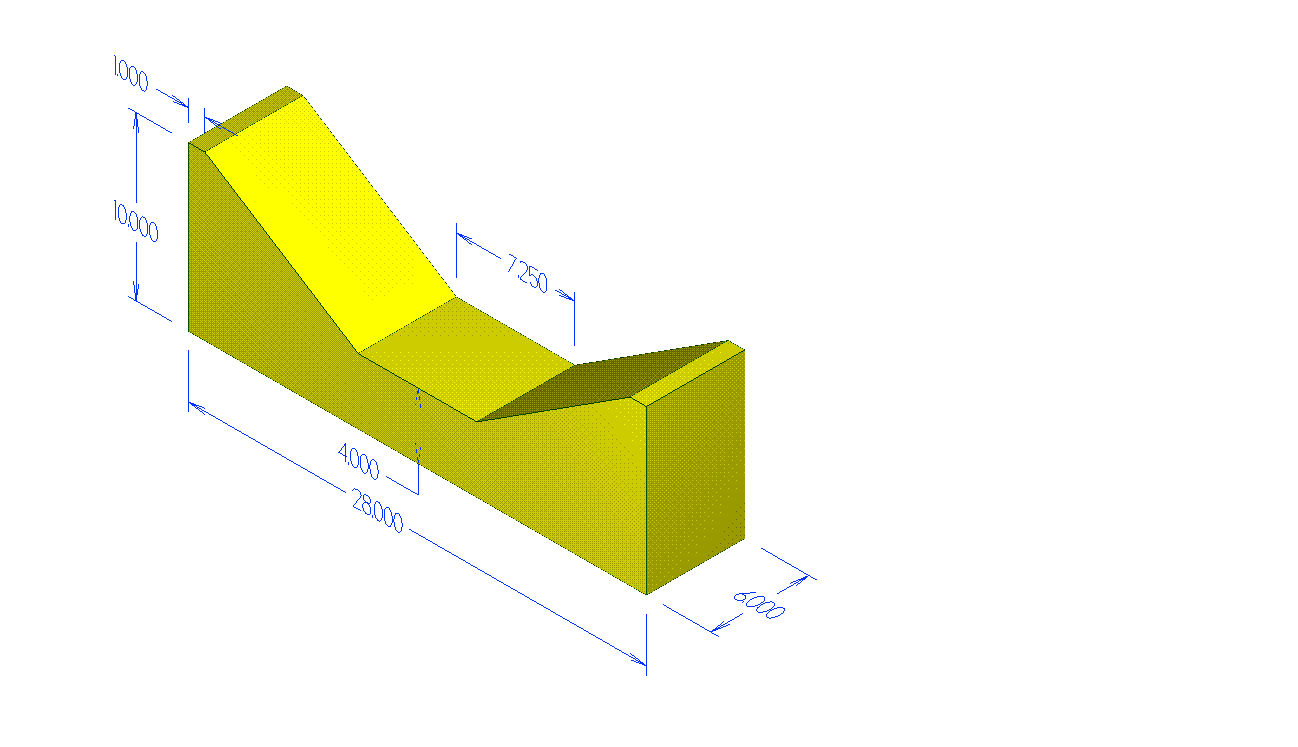

Polyurethane YEL-570 Work Roll Saddle. Custom Colors Available.

YEL-570 Urethane Work Roll Saddle

10” thick on end x 4” thick in middle w/ 7 ¼” flat x 28” wide x up to 6” long.
Available in yellow, red and orange color.

Polyurethane YEL-580 Coil Storage Saddle. Custom Colors Available.

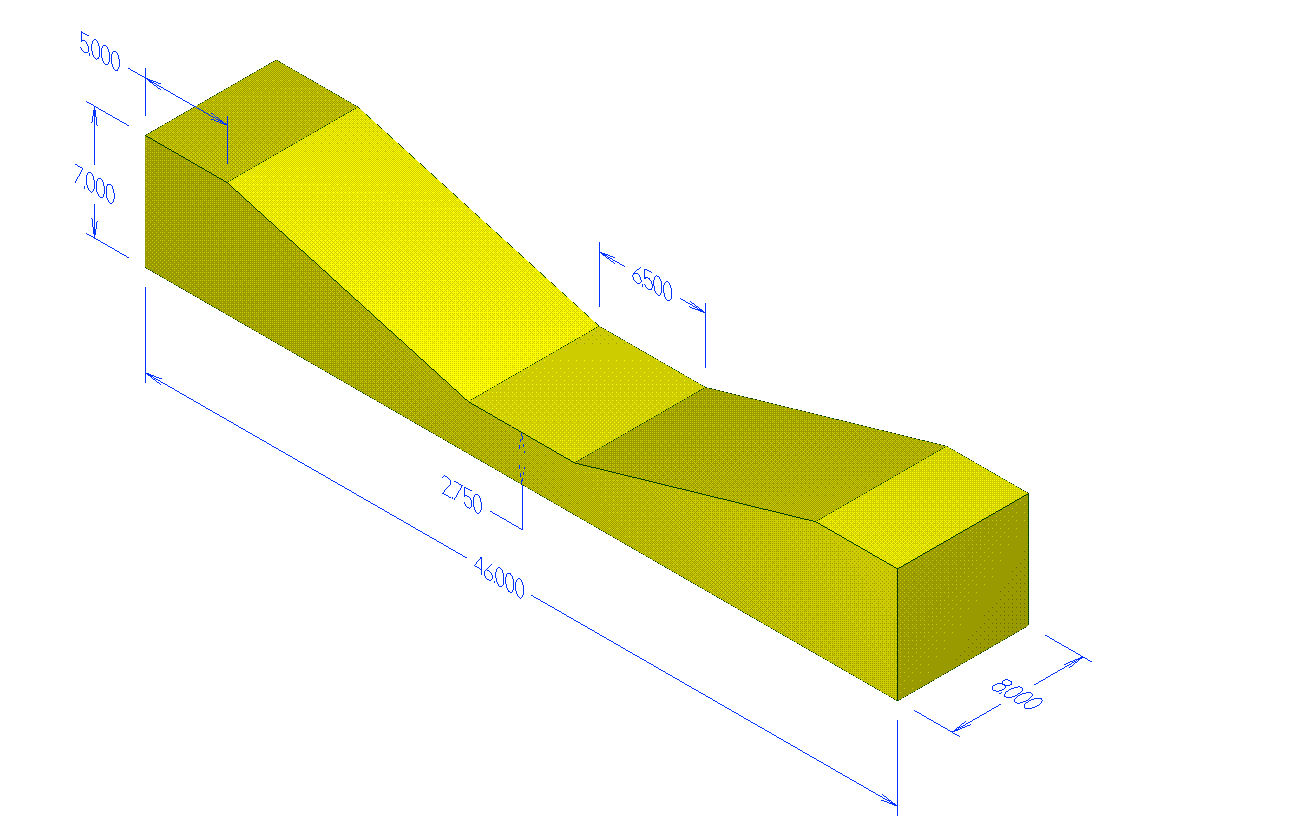

YEL-580 Urethane Coil Saddle

7” thick on end x 2 ¾” thick in middle w/ 6 ½” flat x 46” wide x up to 8” long.
Available in yellow, red and orange color.

Polyurethane YEL-590 Work Roll Saddle. Custom Colors Available.

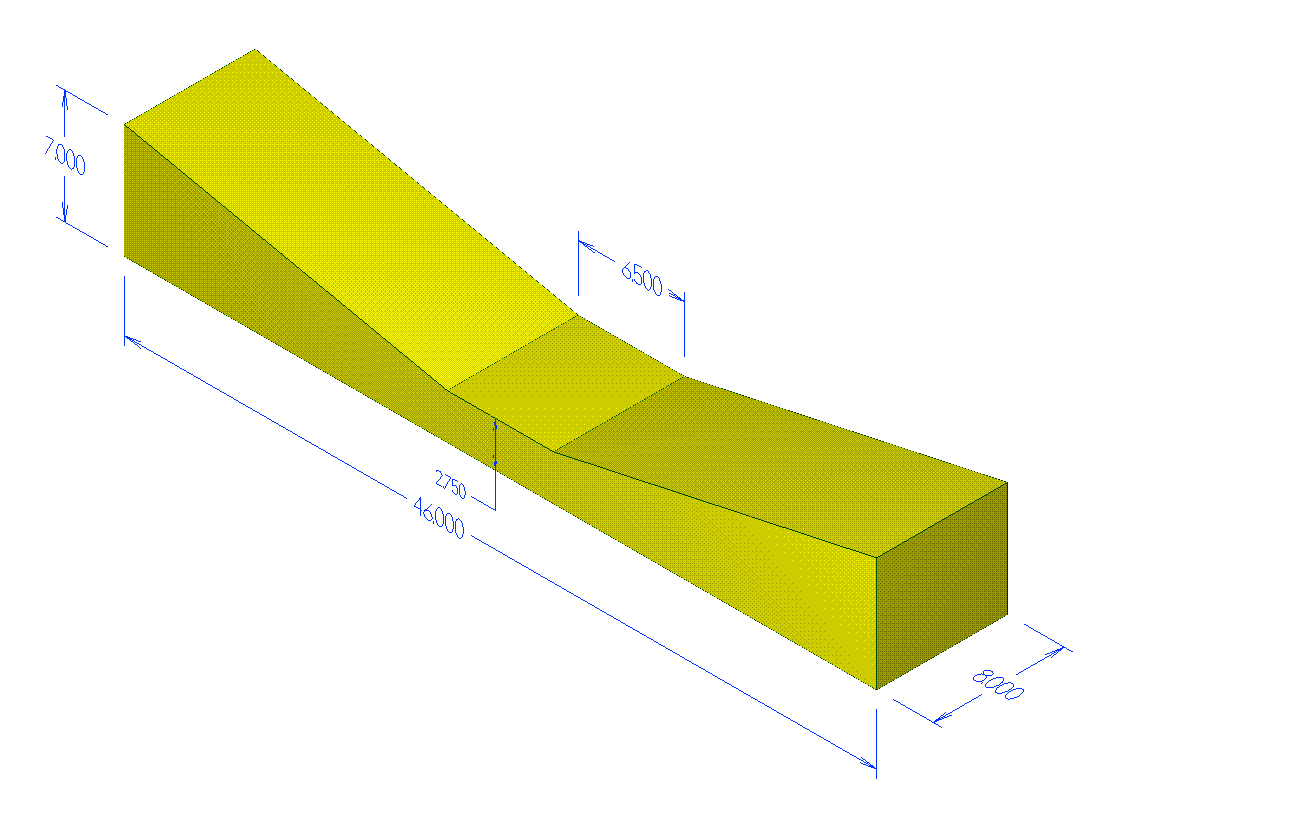

YEL-590 Urethane Work Roll Saddle

7” thick on end x 2 ¾” thick in middle w/ 6 ½” flat x 46” wide x 8” long. For large work roll storage.
Available in yellow, red and orange color.
