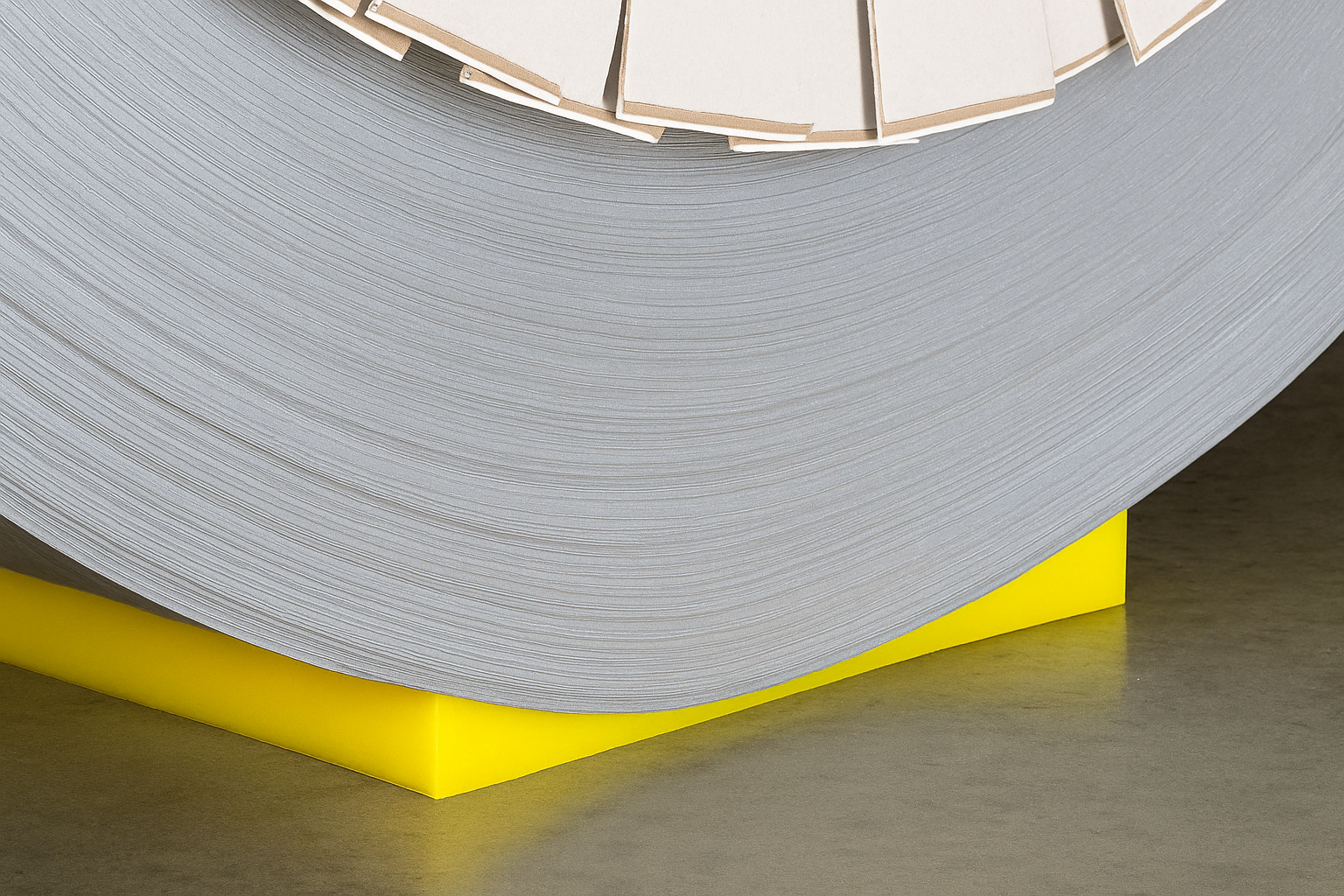

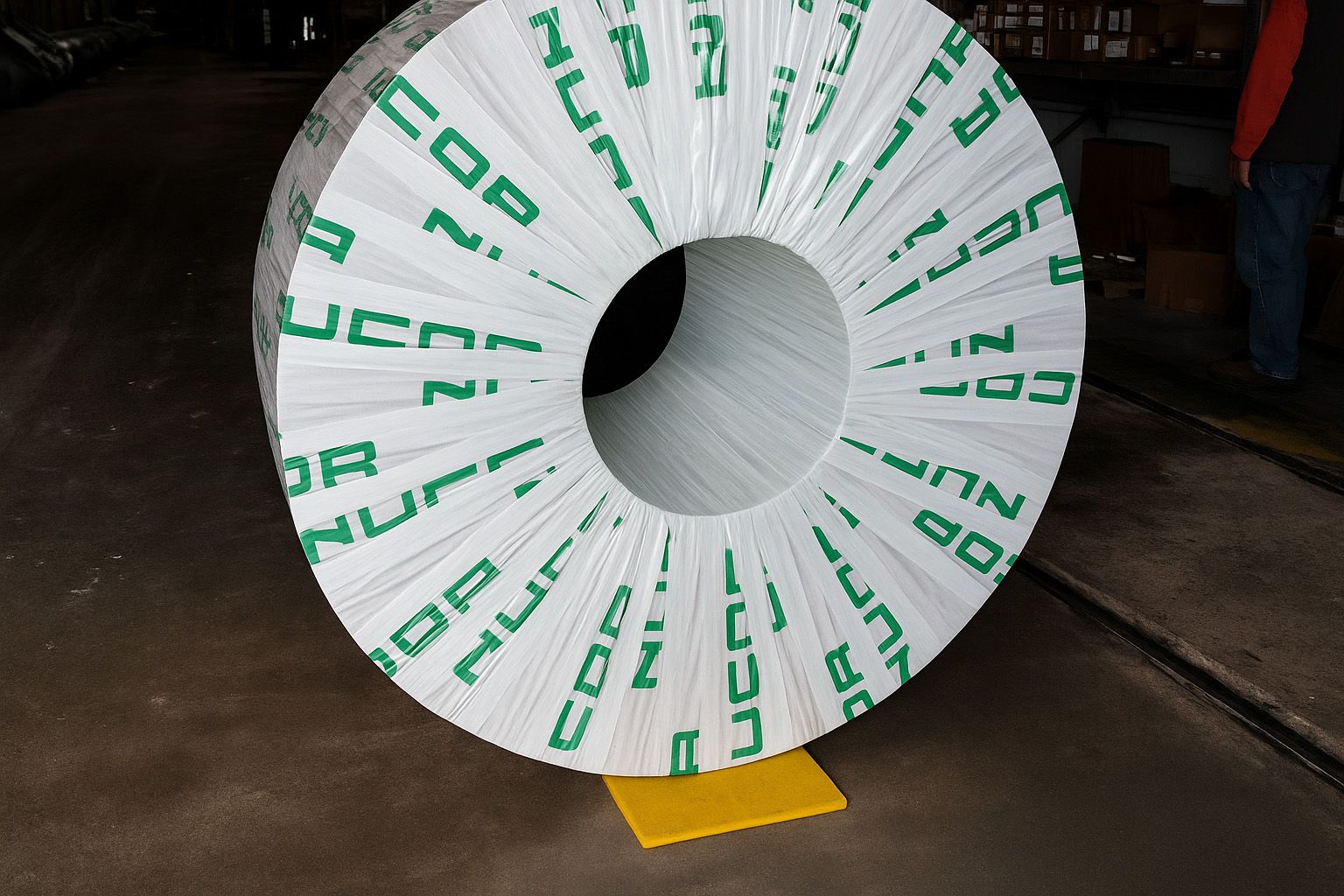

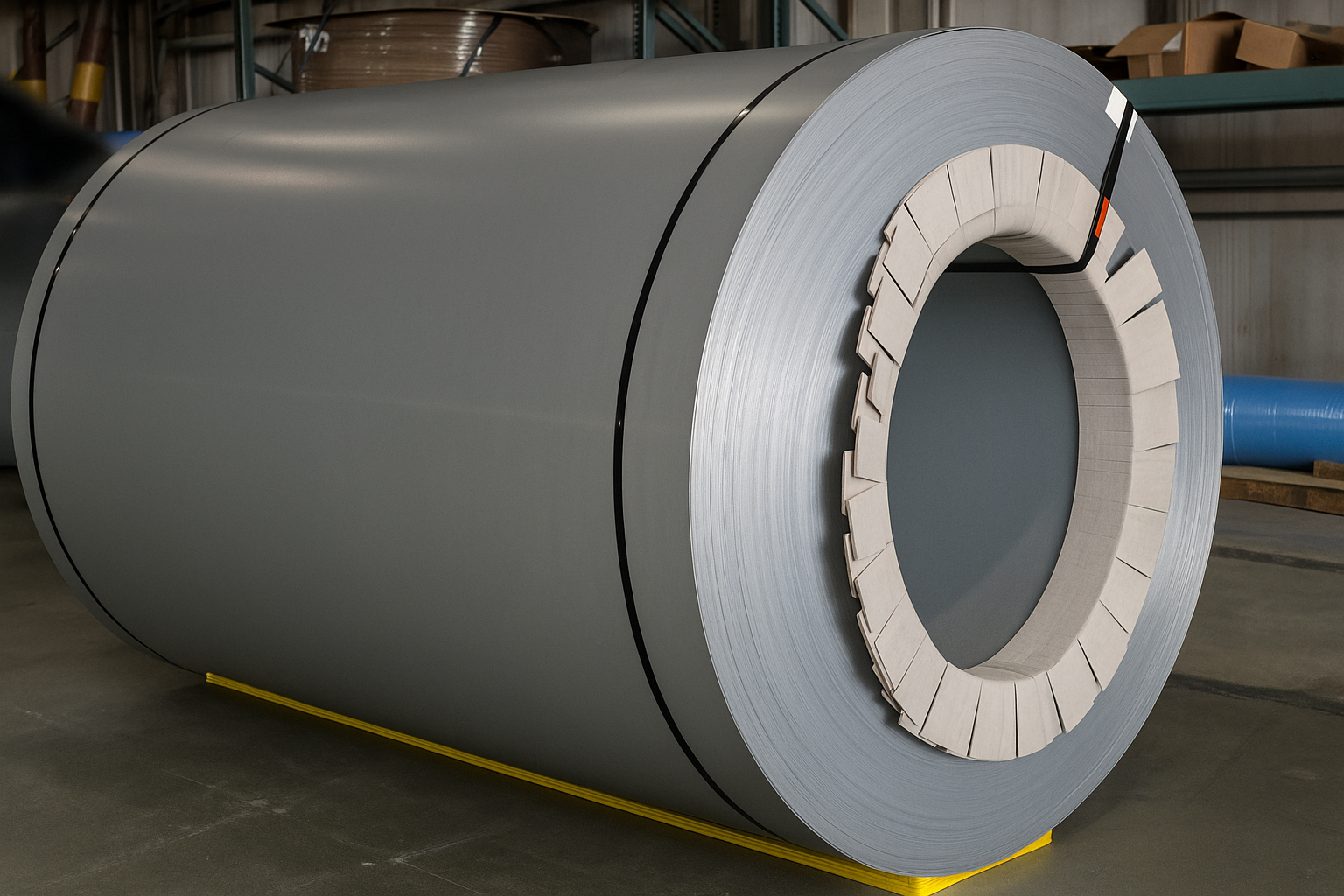

Coil Storage Pads
Coil storage pads are engineered to protect metal coils, prevent floor damage, and support streamlined operations. Made with wear-resistant polyurethane and reinforced steel frames, these pads are available in multiple sizes and configurations to fit your coil storage needs. With options for oil containment, heat resistance, and high-visibility colors, they will help minimize your operations downtime and support safe coil handling.
Industrial-Grade Protection That Lasts
Our coil storage pads are built to handle the demands of steel service centers, coil processing lines, and high-traffic facilities. Each pad is engineered for durability and coil safety.
-
High-grade polyurethane with reinforced steel core
-
Radius contour design for secure coil cradling
-
Helps prevent flat spots, shifting, and surface damage
-
Built to reduce downtime and material loss
Features for Safer, Cleaner Storage
From safer crane handling to cleaner floors, our optional features offer added performance where it matters most.
Oil collection reservoirs capture lubricant runoff
Countersunk bolt holes allow for easy floor anchoring
High-temperature urethane options available
Color choices: yellow, red, orange, gray, and black for visibility and organization
Customizable to Fit Any Coil Setup
No two facilities are the same. That’s why we offer flexible sizing and layout options to meet your operational requirements.
Supports a wide range of coil sizes and weights
Designed for individual pads or end-to-end arrangements
Custom sizing available with quick-ship options
Compatible with full coil systems including blocks, cradles, chocks, and racks
Technical Support Services
We offer engineering support from concept to implementation. Our team helps configure the right coil storage solution for your environment.
-
Layout assistance for both standard and complex facility needs
-
Application-specific system design and planning
-
QA testing and performance verification
-
Long-term technical support available post-installation
Advantages to Using Polyurethane Coil Pads:
Fast, easy and versatile installation of urethane coil pads
Deal direct with manufacture
Maintenance free urethane coil pads
Simplified housekeeping
High visibility
Insures stable coil storage
Urethane pads eliminate coil damage from coil set downs
Prevent damage to uneven coils
Affordable Custom Molds
Polyurethane Coil Pad Options:
| Part Number | Width | Length | Standard Colors | Optional Features (No Extra Cost) |
|---|---|---|---|---|
| #YEL-996 | 16 ½" | Up to 8’ (Custom lengths available) | Yellow, Red, Orange |
|
| #YEL-997 | 17 ½" | Up to 8’ (Custom lengths available) | Yellow, Red, Orange |
|
| #YEL-998 | 12" | Up to 8’ (Custom lengths available) | Yellow, Red, Orange |
|
| #YEL-2076 | 20" | Up to 8’ (Custom lengths available) | Yellow, Red, Orange |
|
Available Urethane Coil Storage Pads:

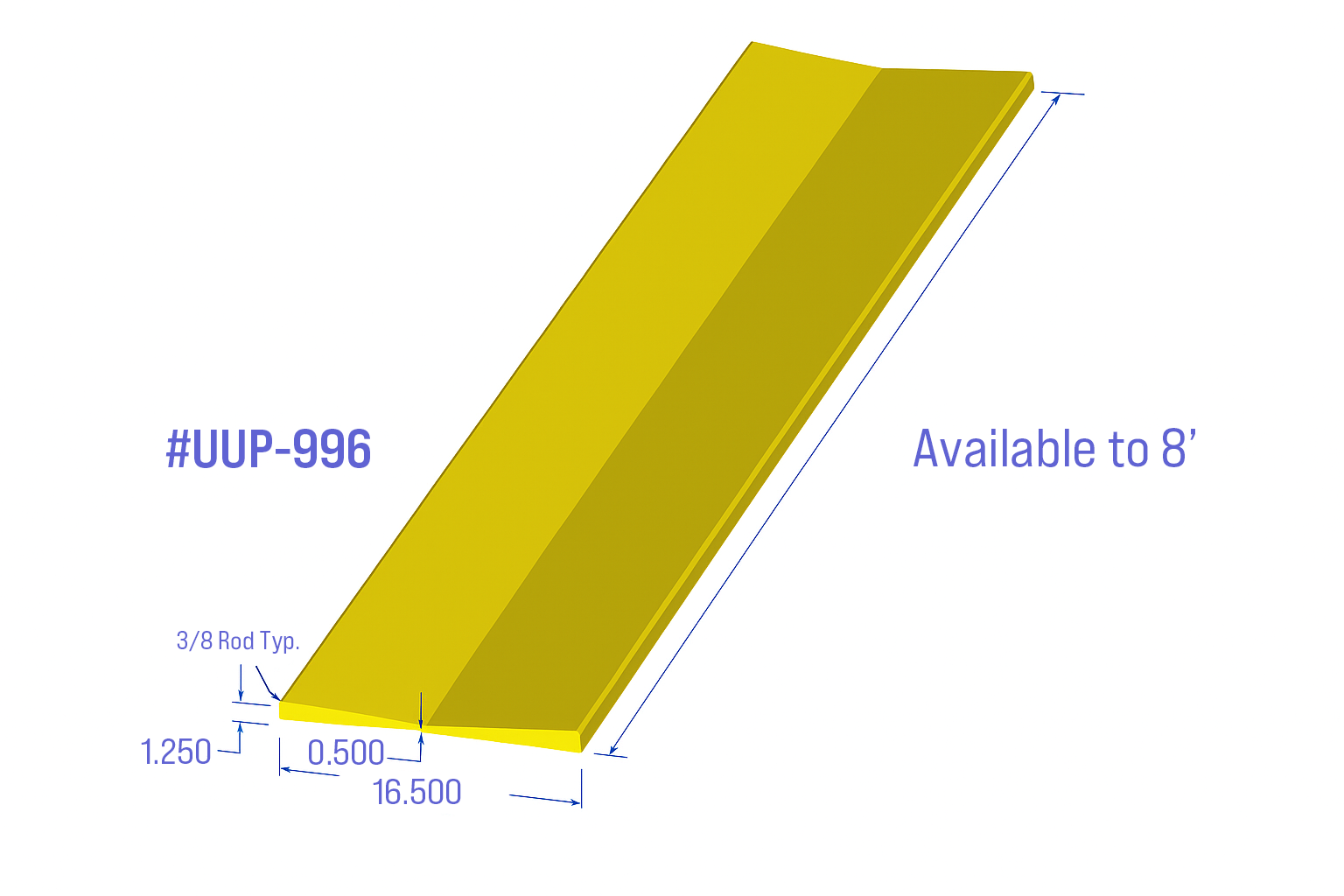

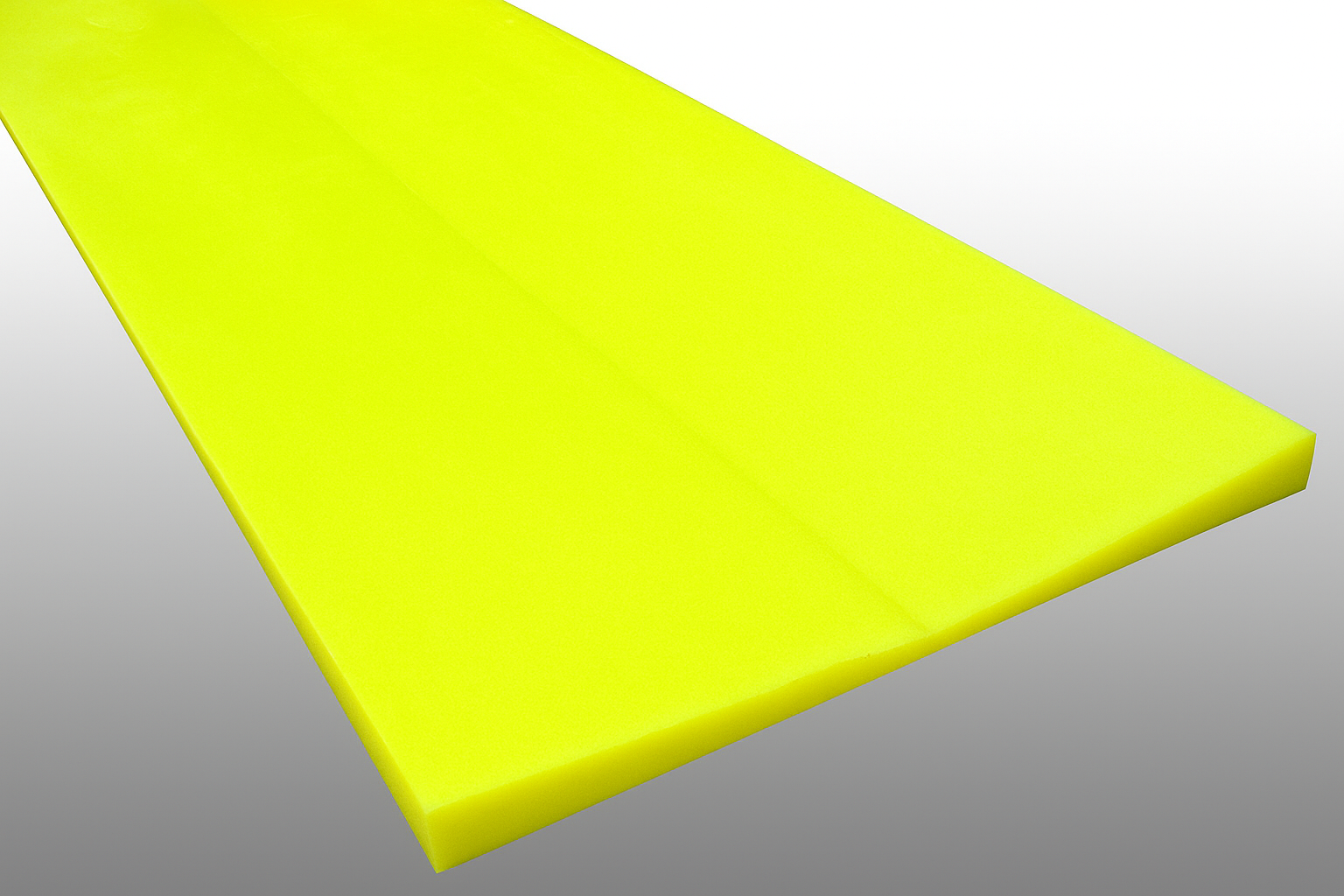

YEL-996 COIL STORAGE PAD
- 16 ½” wide, “V” shaped coil pad
- Standard lengths available up to 8’
- Custom lengths available up to 10'

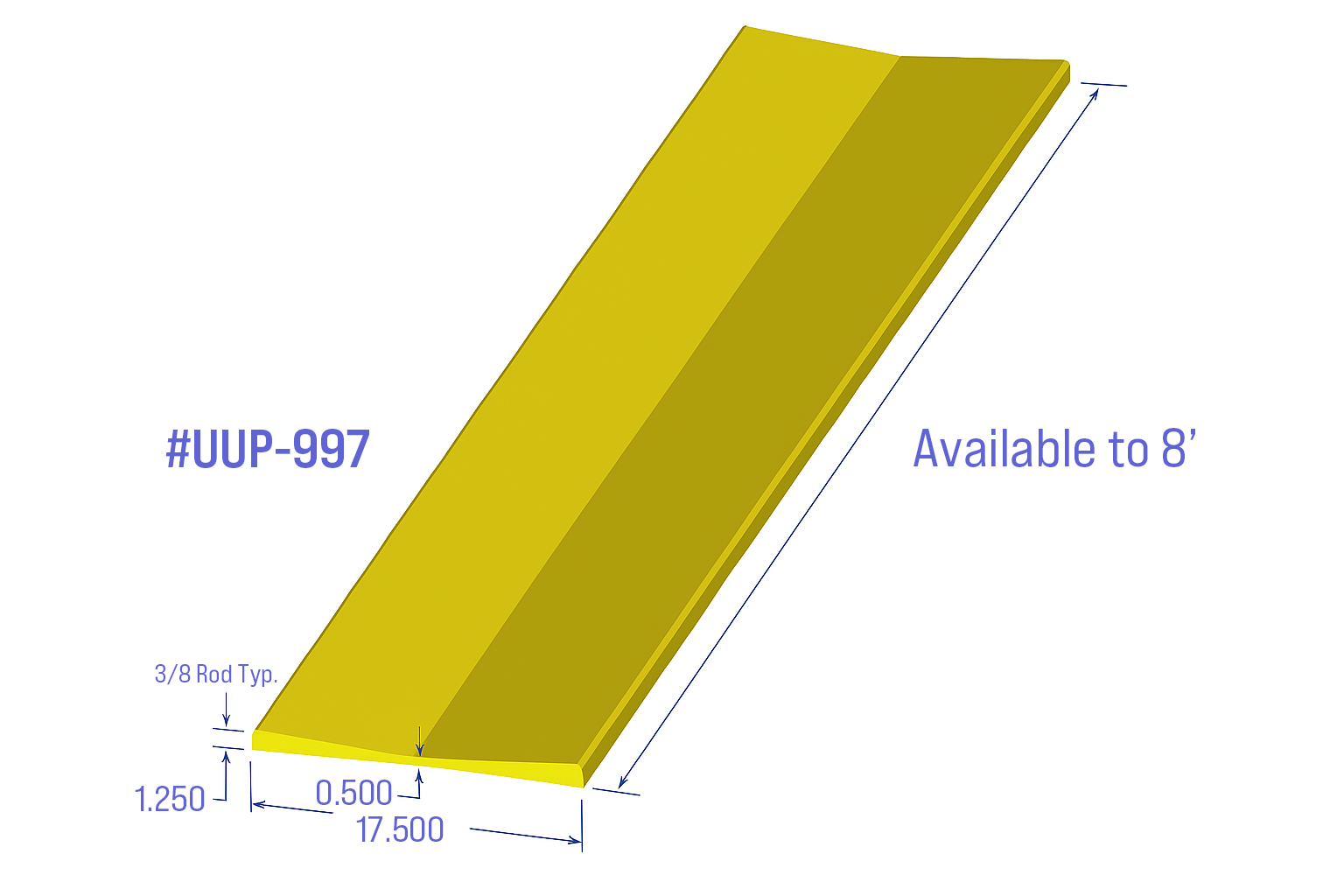

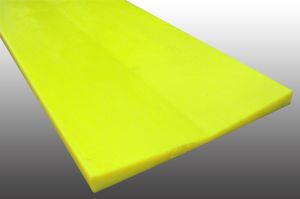

YEL-997 COIL STORAGE PAD
- 17 ½” wide, “V” shaped coil pad
- Standard lengths available up to 8’
- Custom lengths available up to 10’

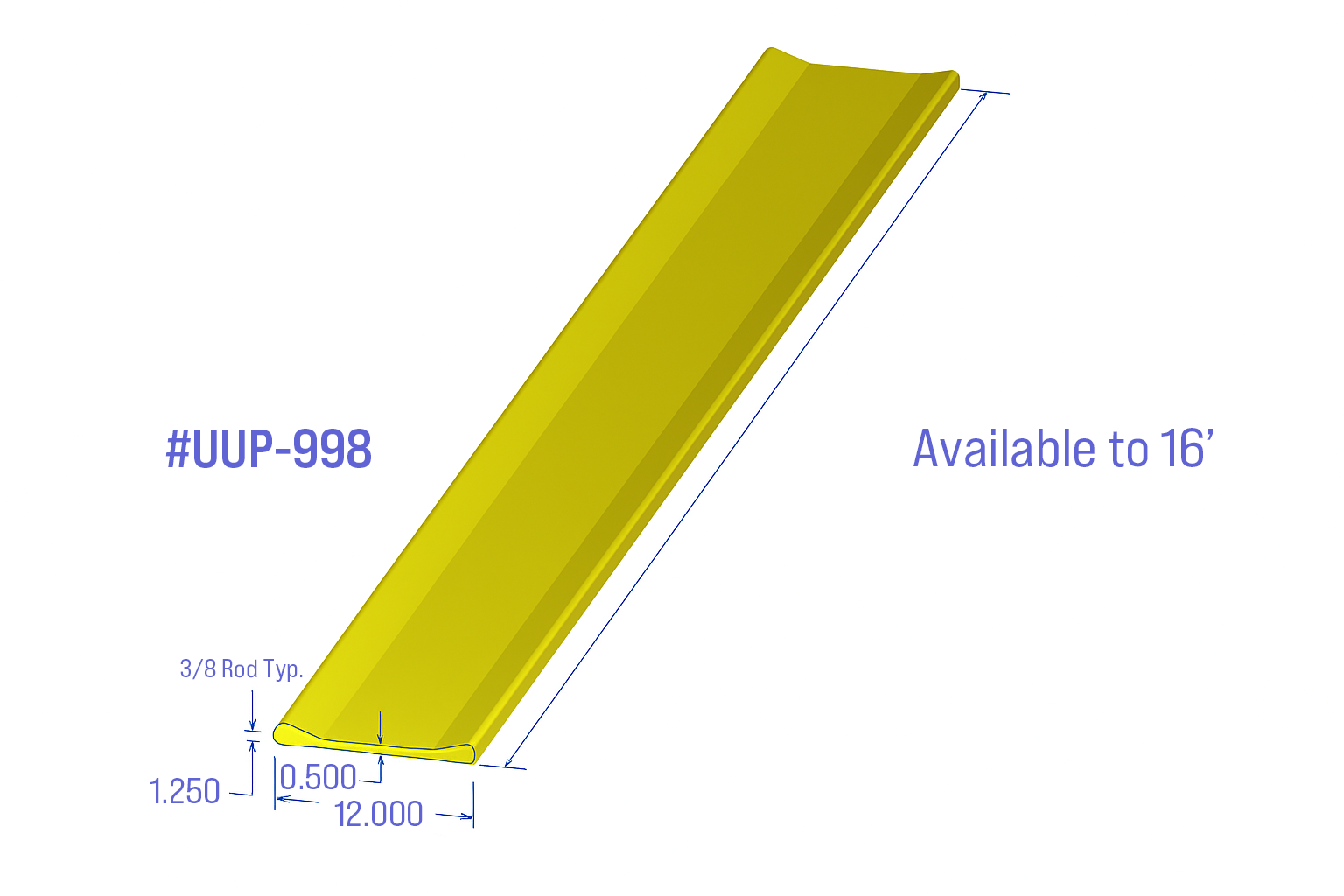

YEL-998 COIL STORAGE PAD
- 12” wide with a 6” flat, “V” shaped on edges
- Standard lengths available up to 8’
- Custom lengths available up to 10’
COIL STORAGE PAD WITH C/S BOLTHOLES, OIL PANS, AND OIL CHANNEL
These options are available for all of our coil storage pads.
YEL-2076 COIL STORAGE PAD
20" wide "V' shaped x 76" long coil pad. Designed for coils up to 72" long. This pad will contain 100% of all oil that comes from coils. No oil will leak to the floor with this pad.
More Coil Storage Solutions
Learn more about our coil storage saddles that are available through Urethane Coil Storage Pads.
